Tutorial · Weaving

How to warp a frame loom with a heddle bar.

Warping a frame loom with a heddle bar

The first thing you need to learn when you want to start your adventure with weaving is how to warp a loom. The warp is all the vertical threads you stretch between the top and bottom beams of the loom.

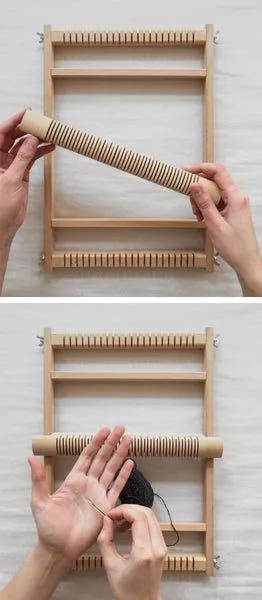

Warping a frame loom with a heddle bar

What you need

Apart from the loom, you will also need a heddle bar. The heddle bar helps to speed up the weaving process by creating an opening between alternating warp threads. There are twice as many grooves on a heddle bar as on a warp beam. The best threads to use for warp are the ones that are not too elastic or stretchy. If you're a beginner, I recommend either cotton or linen warp. Later, for weaving, you will also need weft (horizontal threads), shuttle sticks, and a tapestry needle.

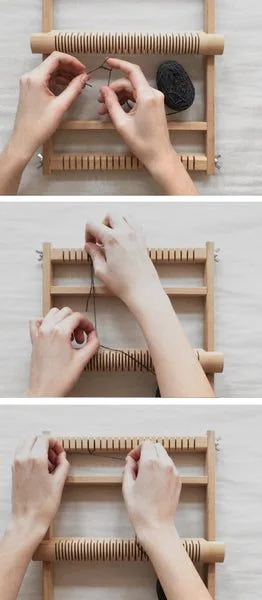

Tools for warping a frame loom

Attach the warp

Make a loop with your fingers and attach the thread to one of the “teeth” on the top beam. Make sure the knot is tightened properly and doesn't move when you pull the thread. A loose knot will make it difficult to keep the tension even, and that's the most important part of warping.

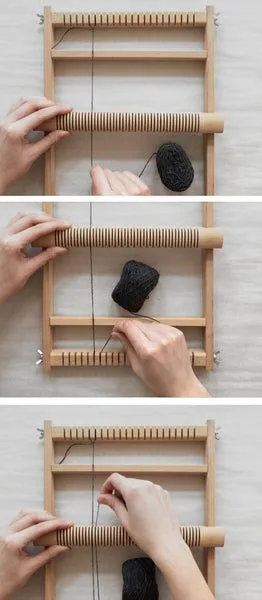

Attaching warp thread to the top beam

Stretch the thread between two beams

Pull the thread and wrap it around a corresponding tooth on the bottom beam. The thread will go through the heddle bar, hook around the bottom tooth, and go back to the top bar through the next groove on the heddle bar.

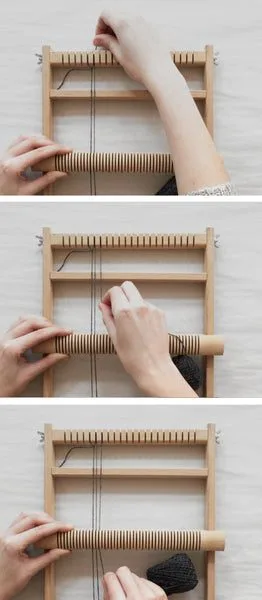

Stretching warp thread between the two beams

Use the grooves on the warping beam twice

Every thread has to go once through each groove on the heddle bar, but twice through each groove on the warping beams.

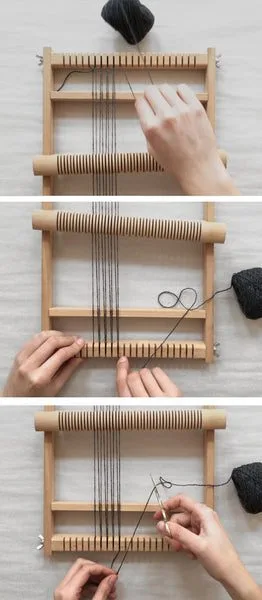

Using the grooves on the warping beam twice

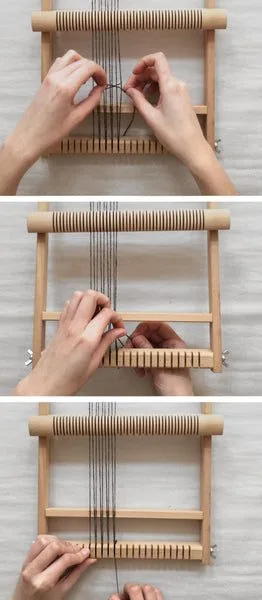

Warping

Go back and forth with your thread until the loom is warped. Remember to tension your threads equally when hooking them around the teeth. Make sure the thread is hooked correctly and it's not going to slide down later, as that might mess up the tension of your weaving. It is better to take it slowly and double-check every hook as you go. There's nothing more frustrating than a loose warp while weaving.

Warping a frame loom back and forth

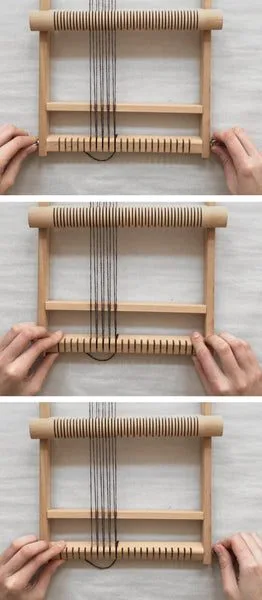

Secure the warp

Finish off by making a knot around the bottom beam. I like to make at least two knots to make sure all threads stay in place.

Securing the warp with a knot around the bottom beam

Adjust the tension

With this kind of loom, you are able to adjust the tension after warping is completed. It can happen that all your threads are tensioned evenly, but the tension is either too strong or too weak. By unscrewing the nuts at both ends of the beam, you are able to adjust the tension. Once you're done, just screw the nuts tight back again and you're good to go.

Adjusting the tension of a warped frame loom

Work with a heddle bar

When your warp is stretched correctly, you can use a heddle bar to create an opening between warp threads. Alternating threads are placed in alternating grooves of the heddle bar. Every time you turn the bar, every second thread will be lifted, so you can easily place your weft between your warp threads.

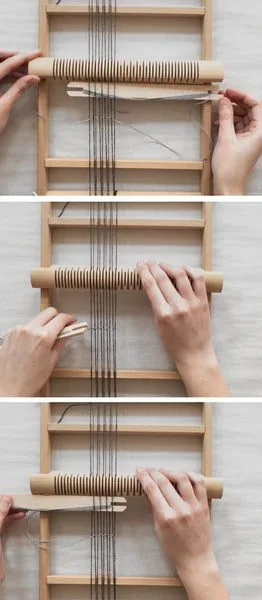

Working with a heddle bar on a frame loom

Creating a shed

Once the first strand of weft is placed, turn the heddle bar again. All warp threads that were at the bottom a second ago will now be lifted, and all the ones that were lifted before will go to the bottom. Push the shuttle with the weft back through the opening.

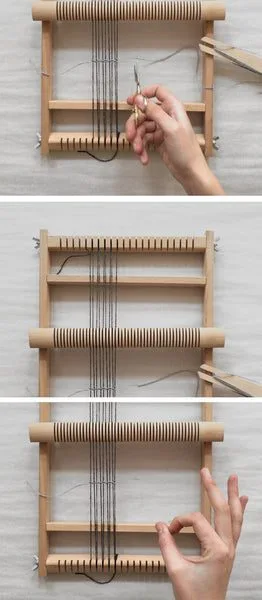

Creating a shed with a heddle bar

Enjoy weaving

Keep turning the heddle bar and pushing the shuttle through the opening until your weaving is finished.

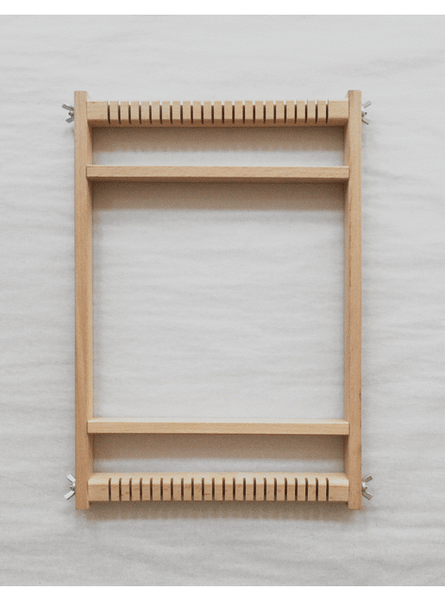

Animation of weaving on a frame loom
